Ride Engine slider rope - size?


Post new topic   Reply to topic    Northwest Kiteboarding -> Gorge / Portland / Oregon Coast
previous topic :: next topic
Author Message
unbob

Since 31 Aug 2008
259 Posts
'da Gorge/LaV
Obsessed



PostWed Aug 08, 18 12:57 pm    Ride Engine slider rope - size? Reply with quote

I've been buying bulk 1/4" Dyneema line locally but that's not really big enough. The replacement rope sold by RE seems to be about the same.

Anyone here using 3/8" Dyneema line? Not sure that would fit through the spreader bar hole - but fairly certain 5/16" will fit.

Seems to me bigger is better when using a slider rope!

http://www.apsltd.com/samson-ropes-amsteel-blue-as-78-line.html

1/4" 6mm 8,600 Tensile Strength (lbs.)
5/16" 8mm 13,700
3/8" 9mm 19,600

_________________
Slack Lines Suck!

Last edited by unbob on Wed Aug 08, 18 1:11 pm; edited 1 time in total

View user's profile Send private message
ldhr

Since 21 Jul 2009
1071 Posts
Hood River
XTreme Poster



PostWed Aug 08, 18 1:07 pm     Reply with quote

the hole is 5/16 wide.
i use the RE replacement sold by Windance for $5.00.
it lasts a 100+ sessions for me.
i 've never broken one - they start to get a little frayed after 100 sessions and i replace it. guessing it would last another 50 sessions if i did not replace.

View user's profile Send private message
unbob

Since 31 Aug 2008
259 Posts
'da Gorge/LaV
Obsessed



PostWed Aug 08, 18 1:19 pm     Reply with quote

ldhr wrote:
the hole is 5/16 wide.
i use the RE replacement sold by Windance for $5.00.
it lasts a 100+ sessions for me.
i 've never broken one - they start to get a little frayed after 100 sessions and i replace it. guessing it would last another 50 sessions if i did not replace.
I've never had one break either - but know of one breakage that did happen - and the guy said the rope wasn't frayed and was shocked that it broke. But I don't know what size rope he was using - or the rope material.

Check out the difference in tensile strength I posted earlier - quite a boost in strength from 1/4" to 5/16" !!

Sure wish Windance & RE would provide the 5/16"/8mm size - but pretty sure that's not the case. Plz correct me if I'm wrong!!

_________________
Slack Lines Suck!

View user's profile Send private message
Wind Slither

Since 04 Mar 2005
2308 Posts
The 503
CRAB-KILLER



PostThu Aug 09, 18 6:51 am     Reply with quote

I was shredding through my ropes (with a Dynabar). Especially when there was the quick release thing on one side. I got rid of it and now go with 2 ropes and 2 rings and keep them waxed. Much slower wear and tear now. Thumb's Up

View user's profile Send private message
wylieflyote

Since 30 Jun 2006
1279 Posts
Puget Sound & Wa. Coast
XTreme Poster



PostThu Aug 09, 18 7:23 am     Reply with quote

Wind Slither wrote:
I was shredding through my ropes (with a Dynabar). Especially when there was the quick release thing on one side. I got rid of it and now go with 2 ropes and 2 rings and keep them waxed. Much slower wear and tear now. Thumb's Up


I was very happy with Bowstring Wax (see link). But then I returned to our hot Mexican winter beach where the high heat caused the wax to turn into sticky honey-like that sucked up all the sand. A few hours later the dyneema lines were ruined and needed immediate replacement:
https://www.amazon.com/Allen-Bowstring-Wax-Synthetic-Bowstrings/dp/B00066U2YM/ref=sr_1_2?s=sporting-goods&ie=UTF8&qid=1533828131&sr=1-2&keywords=allen+bowstring+wax

_________________
CGKA Member
-------
Kip Wylie

View user's profile Send private message
james

Since 17 Apr 2018
8 Posts

Kook



PostThu Aug 09, 18 9:34 am     Reply with quote

Go to a marine supply store and get a piece of AmSteel Blue rigging like this one:

https://www.fisheriessupply.com/samson-rope-blue-amsteel-blue

I can't remember what diameter I got, just make sure it's small enough so that it still fits through the Ride Engine harness.

View user's profile Send private message
Ho-Toe

Since 30 Apr 2014
140 Posts
thread-killer; non sequitur specialist
Upwelling Specialist



PostFri Aug 10, 18 11:03 am    amsteel Reply with quote

Those prices are kinda high. For example, I just bought a spool of 9/16" Amsteel blue (not for kiting!!!) at Englund Marine on the central coast for about $1500-1600 cheaper than this website.

If you are near a trusted purveyor of rigging such as Englund, just take your harness in the store and talk to the resident rigging guru. I guarantee you will learn something, and you'll probably walk out of there with a better slider rope than you had before...

By the way, I just made a Nak-style replacement slider rope for my dynabar out of doubled-up 1/8" amsteel blue, finished off with an oysterman's knot ala G-man. It looks sweet, but as the wind has been dead for the past 2 weeks, I haven't been able to test it out yet.

View user's profile Send private message
unbob

Since 31 Aug 2008
259 Posts
'da Gorge/LaV
Obsessed



PostFri Aug 10, 18 4:29 pm    Re: amsteel Reply with quote

Ho-Toe wrote:
By the way, I just made a Nak-style replacement slider rope for my dynabar out of doubled-up 1/8" amsteel blue, finished off with an oysterman's knot ala G-man. It looks sweet, but as the wind has been dead for the past 2 weeks, I haven't been able to test it out yet.
It would be great if you could provide pics of your DIY slider rope.

How is your doubled-up 1/8" rope a better solution than a single 5/16"/8mm 13,700 tensile strength (lbs.)?

_________________
Slack Lines Suck!

View user's profile Send private message
earthsurfer526

Since 11 Jan 2009
41 Posts
Hood River, OR




PostSat Aug 11, 18 7:46 am     Reply with quote

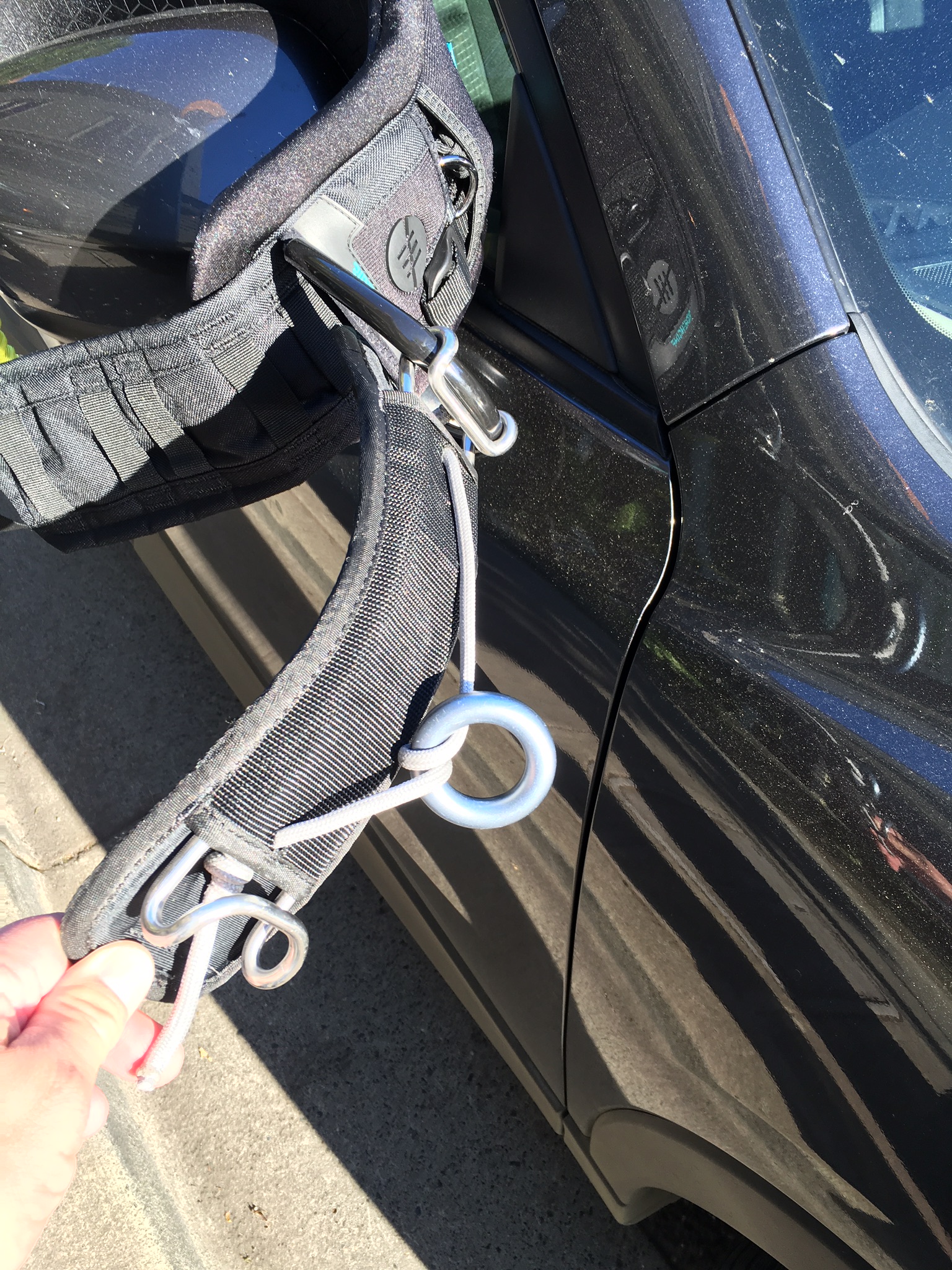

This stuff is the best!
https://www.fisheriessupply.com/new-england-rope-sts-wr2-sk-78-synthetic-life-line

I also twist a rappel ring from REI on it so that it slides smoother and slower.



 Description:

Download
 Filename:  A6B27538-10E7-43F4-8880-F823FF07355D.jpeg
 Filesize:  1.12 MB
 Downloaded:  42 Time(s)
 Note:  Use Pixlr to resize images to lower than 1024x768 resolution so they show up inline.

_________________
BW

View user's profile Send private message Visit poster's website
Ho-Toe

Since 30 Apr 2014
140 Posts
thread-killer; non sequitur specialist
Upwelling Specialist



PostSat Aug 11, 18 9:08 am    Re: amsteel Reply with quote

unbob wrote:
Ho-Toe wrote:
By the way, I just made a Nak-style replacement slider rope for my dynabar out of doubled-up 1/8" amsteel blue, finished off with an oysterman's knot ala G-man. It looks sweet, but as the wind has been dead for the past 2 weeks, I haven't been able to test it out yet.
It would be great if you could provide pics of your DIY slider rope.

How is your doubled-up 1/8" rope a better solution than a single 5/16"/8mm 13,700 tensile strength (lbs.)?


Hi Unbob,

Here’s a pic of my Nak-style double-layer slider rope, uninstalled for ease of viewing.

Advantages as I see it:

It’s made from a scrap from building a replacement depower line.
I already have a bulk spool of 1/8” Amsteel blue.
Double-layer ropes wear better than hollow braid. You are essentially making a kernmantel rope when you double-splice. This prevents the rope from squishing flat under load, and a round rope fits the groove in the sheave of my dynabar hook really well.
The eyesplice allows me to secure one end with a shackle, which means I only have to tie one knot—less opportunity to slip and add slack to the system.

Re: tensile strengths, I think there’s a natural tendency to overthink things. We are kiting, not making dynamic crane picks... The line in the photo should part at about 5K lbs., but since we’re pulling on a bight on a slider rope you effectively halve any load on it. Unless I gain a lot of weight, I think 5K lbs is plenty! What’s the tensile strength of your kite lines?

Ultimately, there are a gazillion ways to skin this cat. Whatever folks decide to do, make sure to inspect your gear often...



View user's profile Send private message
unbob

Since 31 Aug 2008
259 Posts
'da Gorge/LaV
Obsessed



PostSat Aug 11, 18 7:59 pm     Reply with quote

earthsurfer526 wrote:
I also twist a rappel ring from REI on it so that it slides smoother and slower.
I was using two 1" SS rings on my rope. But now no longer needed since North & Slingshot have their slider rope chicken loop products. I use the North and it works great!
_________________
Slack Lines Suck!

View user's profile Send private message
Ho-Toe

Since 30 Apr 2014
140 Posts
thread-killer; non sequitur specialist
Upwelling Specialist



PostTue Aug 14, 18 4:52 am    Re: amsteel Reply with quote

Ho-Toe wrote:

By the way, I just made a Nak-style replacement slider rope for my dynabar out of doubled-up 1/8" amsteel blue, finished off with an oysterman's knot ala G-man. It looks sweet, but as the wind has been dead for the past 2 weeks, I haven't been able to test it out yet.


I got to test it, finally... Smile

It worked great. Minimal stretch, plus it slid much more smoothly thru my dynabar hook’s sheave than the old piece of 1/4” or 5/16” hollow braid I had been using. No visible wear...

Happy rigging to all.
