pounds of force created by kite?


Post new topic   Reply to topic    Northwest Kiteboarding -> Gorge / Portland / Oregon Coast
previous topic :: next topic
Author Message
kiterbiker

Since 12 Jun 2010
65 Posts





PostWed Sep 21, 11 12:52 pm    pounds of force created by kite? Reply with quote

Ok, science peeps out there. Today I was wandering around town running errands, and as usual, thinking of kiting. Then I started wondering how many pounds of force is the kite is producing to boost, say 20feet in the air. If kiter+board weighs 175lbs, or maybe the torque created by the kite. I'm sure theres an equation to bust this value out. Since we all kite, and anyone who jumps can say "a lot", and could give me an answer like "go tie yourself to a quad runner and have it pull you around". I was curious if anyone had any real values out there, and am not just some kook saying "how powerful is the kite really?" Which I know we've seen on the forum, and it ends up with the "go tie yourself to a bus" sort of answers, but wondering if any engineers or physics enthusiasts out there had an actual number for curiosities sake to an experienced kiter who loves pulling the trigger and feeling the power.

View user's profile Send private message
Blaine

Since 06 Aug 2010
96 Posts





PostWed Sep 21, 11 1:47 pm     Reply with quote

What I have seen before is
Force=Wind Speed Squared * Kitesize

View user's profile Send private message
cosmodog

Since 06 Oct 2005
203 Posts

Stoked



PostWed Sep 21, 11 2:18 pm     Reply with quote

Lift on a wing:

L = 1/2 * rho * V * V * A * Cl

Where:
rho = air density
V = air speed over wing
A = area of wing
Cl = lift coef

So for a 10m kite in 20 m/s wind + kite speed (~44 mph) and a lift coef of 0.8 you get:

L = 0.5*1.2*20*20*10*0.8 = 1920 N = 420 lbf

Lots of assumptions but I think its in the right range.

This sim I wrote years ago is closer but lacks accounting for the speed of the kiter when you jump:

http://www.flysim.com/kitesim/kitesim_features.html

View user's profile Send private message
Youkai

Since 08 Feb 2010
553 Posts
Beaverton
Addicted



PostWed Sep 21, 11 2:53 pm     Reply with quote

You could just calculate your potential energy at 20 feet. 4742 joules or 3497 foot-pounds of energy based on your numbers. However much potential energy you have at 20 feet is how much energy it took to get you up there.

I found this potential energy calculator: http://www.ajdesigner.com/phppotentialenergy/potential_energy_equation.php

The acceleration of gravity on the surface of the Earth is 9.8 m/s(squared).

I got a significantly different number than cosmodog though. . .

_________________
Captain kook; always wrong.

View user's profile Send private message
chrissmack

Since 08 Jun 2005
526 Posts
portland
Addicted



PostWed Sep 21, 11 3:20 pm    the answer Reply with quote

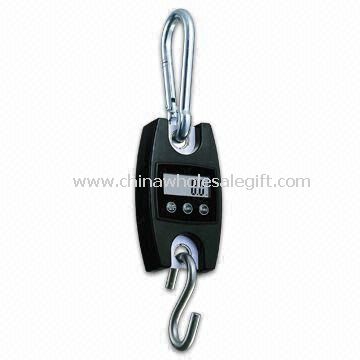

throw something like this on each of your front lines, and go ride...


View user's profile Send private message
Nak

Since 19 May 2005
4280 Posts
Camas
Site Lackey

CGKA Member


PostWed Sep 21, 11 3:33 pm     Reply with quote

Kites do not produce torque. Impossible given flexible lines. Kites produce lift. Translated to you as pull.

Gentle water start: 75% of your body weight.

Aggressive water start: up to 120% of your body weight, more for something super aggressive.

Dragging across sand with your heals dug in: 100% of your body weight. (Level ground. )

dragging across wet mud: next to nothing.

Dragging across sand while prone and trying to stop: anywhere from 50% to 80% of your body weight. Level ground.

Jumping & tricks: A minimum of 100% of your body weight. On up to whatever.

Just cruising. Depends on the board. 50% of your body weight on down.

Yep, I've done all that with a force gauge.

View user's profile Send private message
DangleMaster123

Since 01 Aug 2010
38 Posts





PostWed Sep 21, 11 4:22 pm     Reply with quote

Youkai, you're always wrong. It's about 20,136 killonewtons. Pretty amazing if you ask me.
_________________
I love to Dangle

View user's profile Send private message
SalmonSlayer

Since 27 Nov 2005
648 Posts

Addicted

CGKA Member


PostWed Sep 21, 11 4:38 pm     Reply with quote

Nak wrote:

Yep, I've done all that with a force gauge.


that is slightly geeky, but, I think you know it. Very Happy

View user's profile Send private message
Nak

Since 19 May 2005
4280 Posts
Camas
Site Lackey

CGKA Member


PostWed Sep 21, 11 4:56 pm     Reply with quote

Yeah, I know. Very Happy There was a reason. I needed to know those numbers for some work I was doing. Nothing like getting beat all to hell being drug behind a truck in the name of advancing technology.

View user's profile Send private message
kitezilla

Since 22 Jun 2006
453 Posts
gorge
Obsessed



PostWed Sep 21, 11 7:04 pm     Reply with quote

Nak wrote:
Yeah, I know. Very Happy There was a reason. I needed to know those numbers for some work I was doing. Nothing like getting beat all to hell being drug behind a truck in the name of advancing technology.


Some of us remember that very admirable project... one of the many things we respect you for. Some day I would like to hear "the rest of the story".

View user's profile Send private message
scottman

Since 08 Jun 2007
150 Posts
hillsboro
Stoked



PostWed Sep 21, 11 7:43 pm     Reply with quote

i always heard the angle of the dangle was proportional to the heat of the meat

View user's profile Send private message
arkay

Since 06 Jun 2008
192 Posts
Manzo/Hillsburrito
Stoked



PostWed Sep 21, 11 8:46 pm     Reply with quote

No wind day, force meter, tether, car... don't try this at home

View user's profile Send private message
Scriffler

Since 03 Jul 2005
581 Posts
LYLE
Addicted



PostWed Sep 21, 11 9:18 pm     Reply with quote

We did it one time testing for North. If I remember right the kite exerted almost nine hundred pounds of force being towed up to 40 MPH behind a truck in no wind, that was the highest reading when turning a 14 M. Never broke the thousand pound mark but were very close a few times.

View user's profile Send private message
arkay

Since 06 Jun 2008
192 Posts
Manzo/Hillsburrito
Stoked



PostThu Sep 22, 11 6:53 am     Reply with quote

wind tunnel time is too expensive for most kite makers... it's pretty insane what a thin sheet of nylon can do, ain't it! Thumb's Up

View user's profile Send private message
kenja

Since 19 Jun 2008
179 Posts

Stoked



PostThu Sep 22, 11 7:02 am     Reply with quote

I snapped two 600lb test lines while unintentionally looping my '02 fuel back in the day. Thank god they broke or I wouldn't be here to tell the story. So at least 600lbs... Probably more.

View user's profile Send private message
Aeolus

Since 20 Apr 2010
354 Posts
Gold Beach, OR
OR-SoCo-Aficionado



PostThu Sep 22, 11 7:44 am     Reply with quote

Nak wrote:
Yep, I've done all that with a force gauge.

I had a feeling that post was going to end like that. Sickness! Laughing

View user's profile Send private message
